GBT X-band [pnt_highgreg_20] 05-06 Jun 2002
The all-sky pointing run was performed using the X-band pointing model
determined in 28-30 Dec 2001. The pointing residuals are shown below.
The blue triangles correspond to residuals in elevation (Delta(E)),
while the green circles corresond to residuals horizontally on the sky
(Delta(A)*Sin(E)).

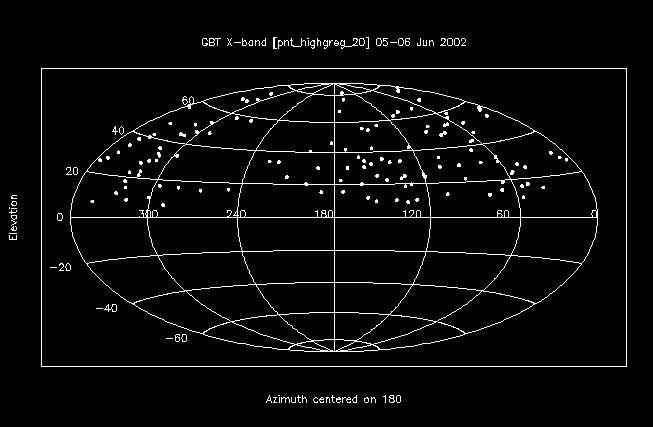

The all sky pointing run Az-El coverage. (Postscript Version)

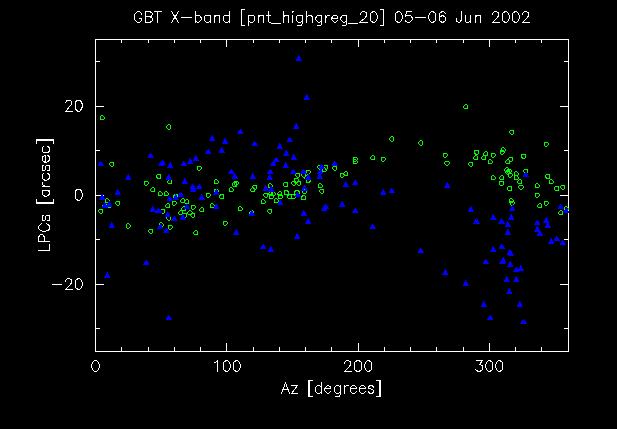

The residuals as a function of azimuth. (Postscript Version)

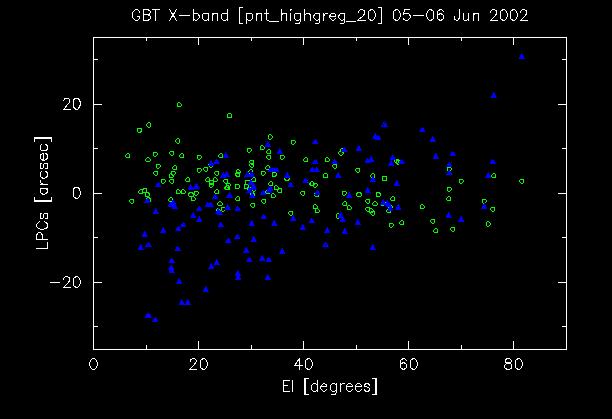

The residuals as a function of elevation. (Postscript Version)
The results were analyzed using the program TPOINT (Wallace 1998).
Eight physical terms were used. The determined coefficients are
listed below along with the correlation between terms. Plots of
various parameters follow.
Last modified: Sun Oct 27 20:45:41 EST 2002
* fit
coeff change value sigma
1 & IA +0.000 -6.74 7.964
2 & IE -0.000 +794.83 9.753
3 & NPAE +0.000 -4.40 6.770
4 & CA -0.000 -29.53 9.776
5 & AW +0.000 -3.87 0.685
6 & AN -0.000 -4.95 0.668
7 & HZCZ +0.000 +720.76 6.759
8 & HZSZ -0.000 +806.89 7.947
Sky RMS = 6.09
Popn SD = 6.29
* Correlations between terms:
IE -0.0011
NPAE +0.9409 -0.0011
CA -0.9901 +0.0012 -0.9752
AW +0.0087 +0.0266 -0.0245 -0.0007
AN -0.0130 -0.0051 -0.0257 +0.0124 -0.1344
HZCZ -0.0006 +0.9749 -0.0008 +0.0008 +0.0460 -0.0376
HZSZ -0.0011 +0.9901 -0.0015 +0.0012 +0.0333 +0.0012 +0.9406
IA IE NPAE CA AW AN HZCZ

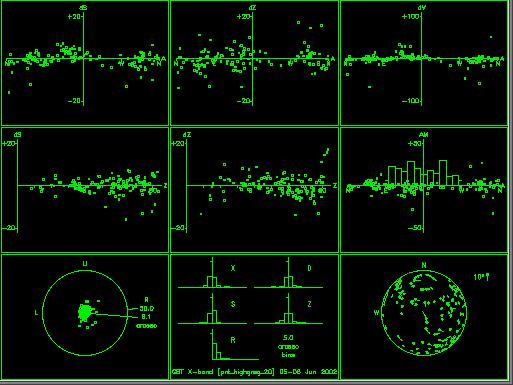

Summary of TPOINT results. (Postscript Version)
Residuals horizontally on the sky versus azimuth
Residuals in zenith angle versus azimuth
Residuals corresponding to Az/El non-perpendicularity versus azimuth
Residuals horizontally on the sky versus zenith angle
Residuals in zenith angle versus zenith angle
Residuals in azimuth axis misalignment
Scatter diagram of the pointing residuals
Distributions of the pointing residuals
|
|
|
|
|
|
