GBT X-band [Tpnt_highgreg24] 07-08 Sep 2002
The all-sky pointing run was performed using the S-band pointing model
determined in 09-10 March 2001. The model for refraction was improved
and a new empirical focus tracking model was incorporated. Hence the
large residuals observed below. The blue triangles correspond to
residuals in elevation (Delta(E)), while the green circles corresond
to residuals horizontally on the sky (Delta(A)*Sin(E)).

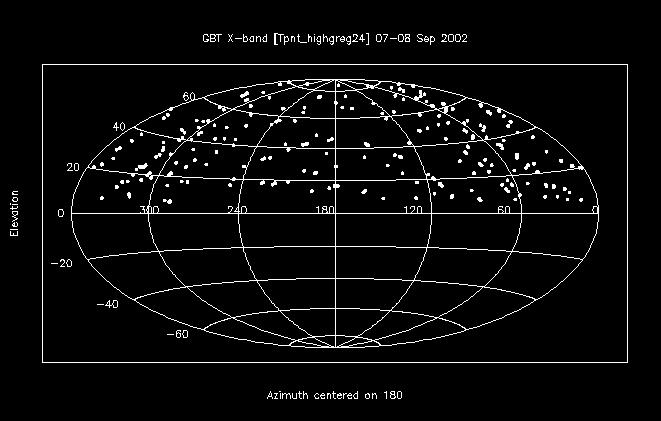

The all sky pointing run Az-El coverage. (Postscript Version)

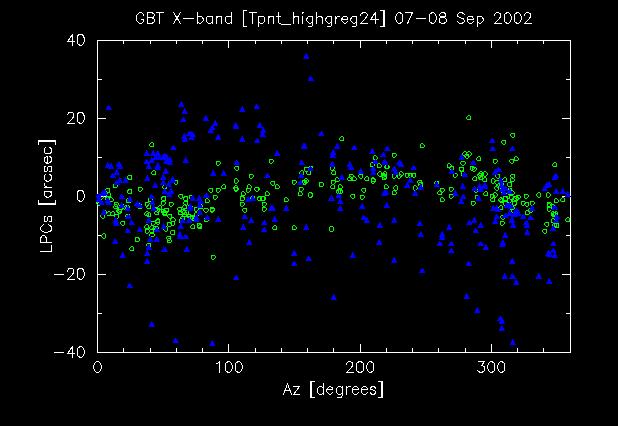

The residuals as a function of azimuth. (Postscript Version)

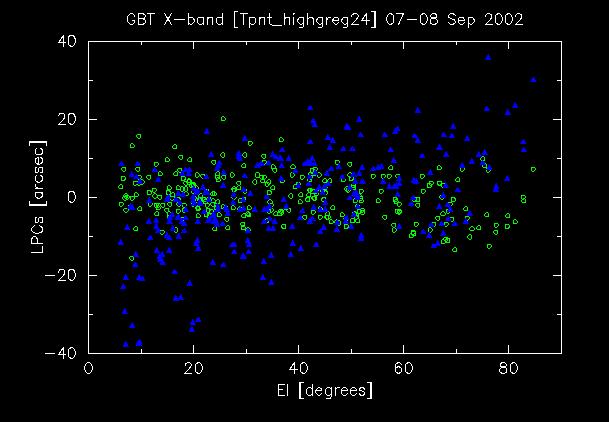

The residuals as a function of elevation. (Postscript Version)
The results were analyzed using the program TPOINT (Wallace 1998).
Eight physical terms were used. The determined coefficients are
listed below along with the correlation between terms. Plots of
various parameters follow.
Last modified: Sun Oct 27 20:45:15 EST 2002
* fit
coeff change value sigma
1 & IA +0.000 -6.63 7.699
2 & IE +0.000 +780.44 9.544
3 & NPAE +0.000 -1.62 6.843
4 & CA -0.000 -33.84 9.534
5 & AW +0.000 -2.79 0.725
6 & AN +0.000 -1.54 0.752
7 & HZCZ +0.000 +708.11 6.846
8 & HZSZ +0.000 +801.07 7.699
Sky RMS = 10.23
Popn SD = 10.37
* Correlations between terms:
IE -0.0018
NPAE +0.9389 +0.0005
CA -0.9880 +0.0016 -0.9760
AW +0.0190 -0.0644 -0.0098 -0.0172
AN +0.0226 +0.0498 +0.0133 -0.0206 -0.0018
HZCZ -0.0023 +0.9762 +0.0002 +0.0020 -0.0615 +0.0295
HZSZ -0.0020 +0.9879 +0.0003 +0.0018 -0.0599 +0.0335 +0.9393
IA IE NPAE CA AW AN HZCZ
Summary of TPOINT results. (Postscript Version)
Residuals horizontally on the sky versus azimuth
Residuals in zenith angle versus azimuth
Residuals corresponding to Az/El non-perpendicularity versus azimuth
Residuals horizontally on the sky versus zenith angle
Residuals in zenith angle versus zenith angle
Residuals in azimuth axis misalignment

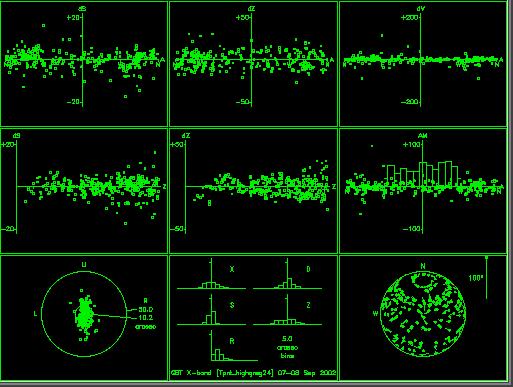

Scatter diagram of the pointing residuals
Distributions of the pointing residuals
|
|
|
|
|
|
