Front Ends

A variety of receivers are available on the 140 Foot telescope at both prime and Cassegrain focus. Information about these receivers including the frequency range, system temperature, polarization, etc. can be obtained in the front end status sheet. It can be viewed in GIF or postscript format:

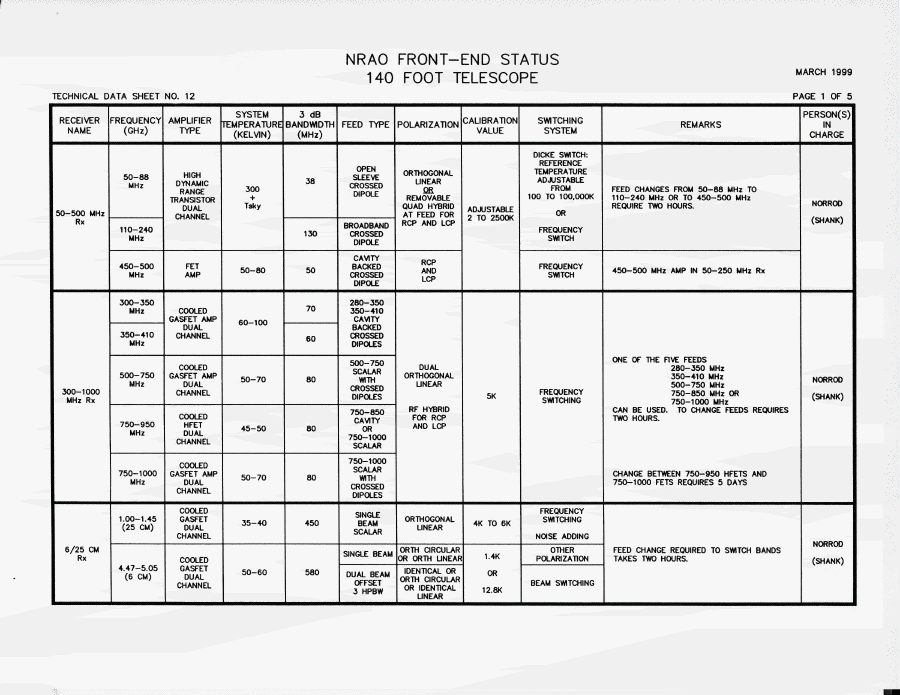

Front End (page 1)

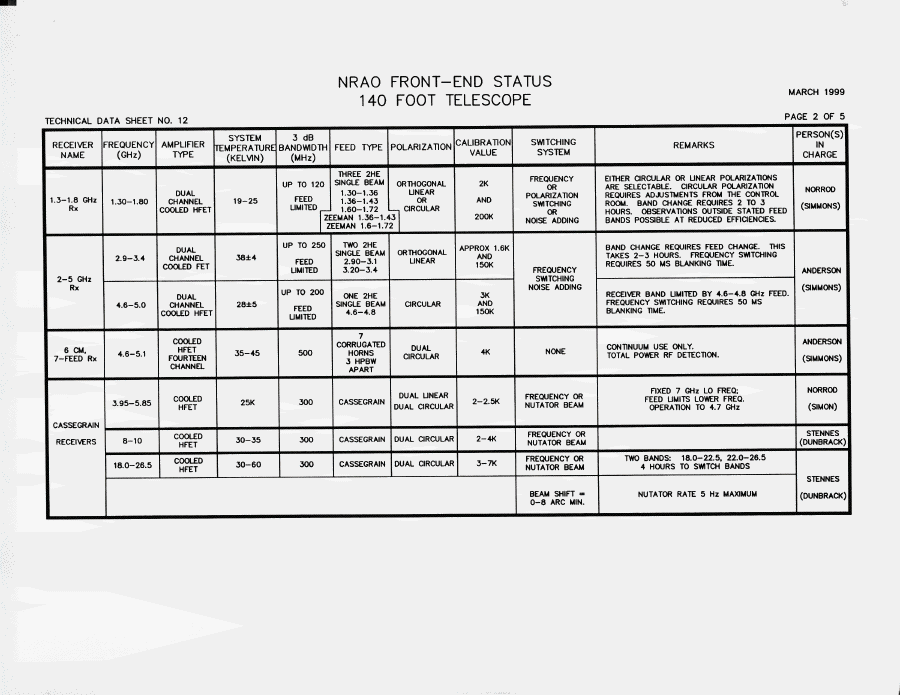

Front End (page 2)
Front End (postscript)

For some receivers calibration data is available on-line:

Calibration Data
