The plots below show 5 minutes of data on 3C286 calibrated by subtraction
of 5 minutes of off source data, then division by the off source spectra.
The an off source system temperature of 20 K was assumed for these
observations.
|

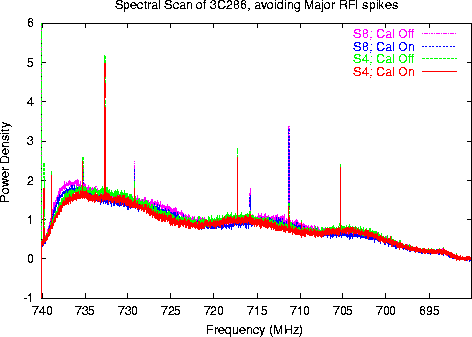

Uncalibrated observations of radio source 3C286. Showing the relative
gain of the GBT system as a function of frequency (X axis).
This plot shows dual polarization observations of the two cal states of
linear polarization observations at 800 MHz.
2002_01_24_06:56:10A.0.ps |
|

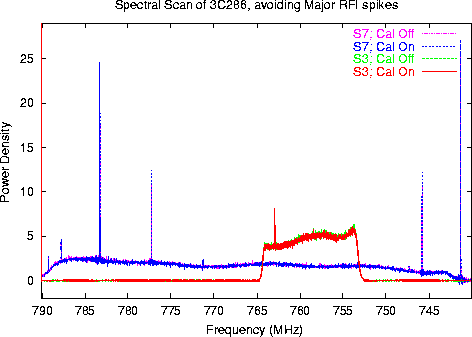

Uncalibrated observations of radio source 3C286. Showing the relative
gain of the GBT system as a function of frequency (X axis).
The X linear polarization channel shows a 12.5 MHz band pass filter
in band, because of a failure of the 50 MHz filter.
2002_01_24_06:56:10A.1.ps |
|

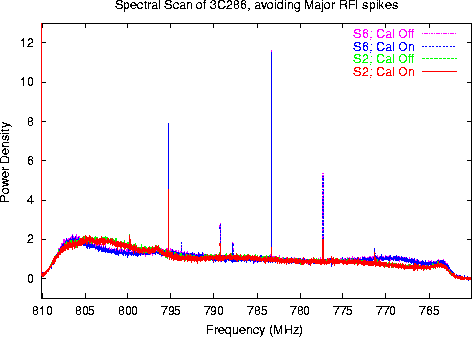

Uncalibrated observations of radio source 3C286. Showing the relative
gain of the GBT system as a function of frequency (X axis).
2002_01_24_06:56:10A.2.ps |
|

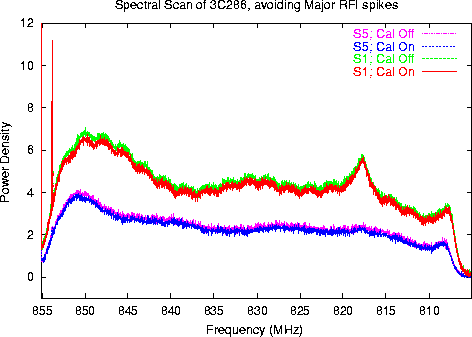

Uncalibrated observations of radio source 3C286. Showing the relative
gain of the GBT system as a function of frequency (X axis).
2002_01_24_06:56:10A.3.ps |
|

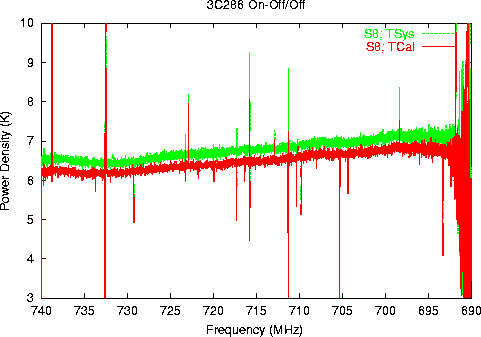

Calibrated observations of radio source 3C286. Showing spectral shape
of the radio source and several RFI features.
The calibration was performed by subtracting a 5 minute off source observation
from a 5 minute on source observation, then dividing by the off source
spectra. The intensity scale (Y axis) was set assuming the off source
system temperature was 20 K.
Only a single (Y linear) polarization is shown, but for both cal on and
cal off spectra.
2002_01_24_06:43:55A.4.ps |
|

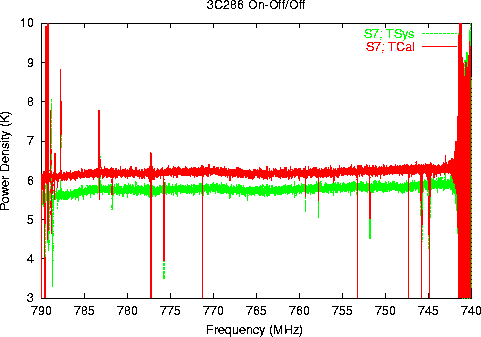

3C286: 326; OffOn 1/2
(Plot - Off) / Off (1)
2002_01_24_06:38:35A.5.ps |
|

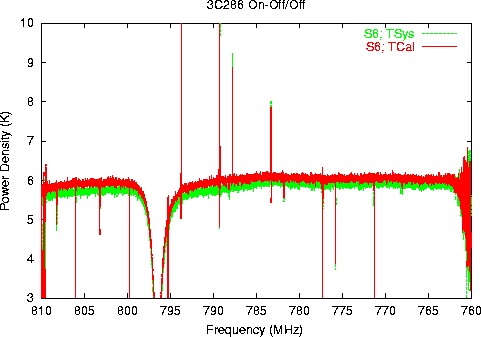

Calibrated spectra of bright radio source 3C286.
The deep notch at 796 MHz is due to the "Ortho-mode-transducer"
in the receiver feed, which has low gain at resonant frequencies.
2002_01_24_06:43:55A.6.ps |
|

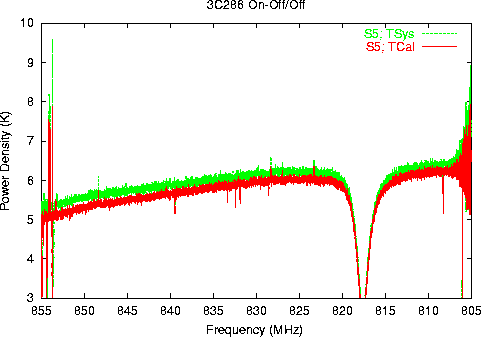

Calibrated spectra of bright radio source 3C286.
The deep notch at 817.5 MHz is due to the "Ortho-mode-transducer"
in the receiver feed, which has low gain at resonant frequencies.
Also note the 10 % absorption feature at 839.4 MHz.
2002_01_24_06:43:55A.7.ps |
|

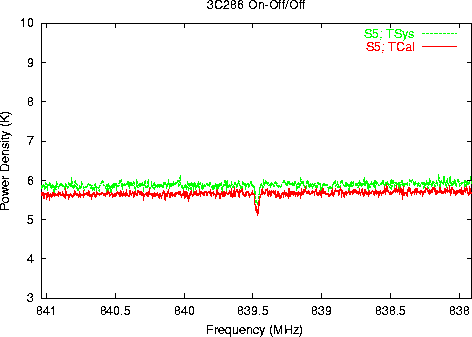

Same spectrum as above, except zoomed in on 839.5 MHz center frequency.
Calibrated observations of radio source 3C286. Showing a high redshift
neutral hydrogen absorption feature.
2002_01_24_06:43:55A.8.ps |
|

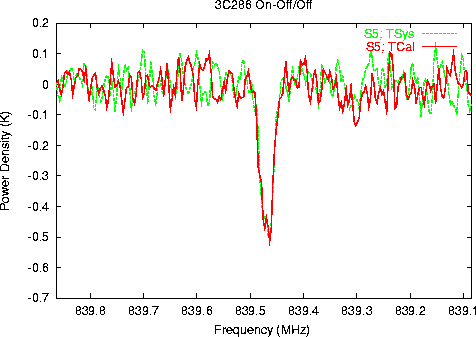

Same spectrum as above, except zoomed in further on 839.5 MHz center frequency.
Calibrated observations of radio source 3C286. Showing a high redshift
neutral hydrogen absorption feature. The 3C286 intensity has been
subtracted using a linear baseline fit.
The absorption feature is approximately
10 % of the 3C286 source brightness.
|
