On 2002 January 31 observations of several bright radio sources were
performed with the GBT Prime Focus 1 receiver at 600 MHz. Here
the raw uncalibrated spectra near source 3C48 are presented to show
the radio frequency interference (RFI) environment.
The GBT autocorrelation spectrometer (ACS) was used in the 50 MHz wide,
dual linear polarization mode. A total of 8 IF inputs were
supplied to the ACS simultaniously. The data were
organized in 4 pairs of dual linearly circularized signals; one pair
in each of 4 spectral bands.
The spectral bands were spaced by 40 MHz to give overlapping spectral coverage
over the entire frequency range accessible using the PF1 600 MHz feed.
The data were taken in 5 minute scans consisting of 29 or 30 ten second
integrations. Below the RFI in the 600 MHz band is shown in a
series of plots of the Y polarization linear intensity versus observing
frequency.
The spectra are processed in two ways below. To show the brightest
RFI features, the average of all integrations is shown in the first
of the pairs of plots. To show the gains of the system and the
weaker RFI features a second plot is shown where the brightest RFI
features are set to zero.
The 600 MHz band is particularly rich in RFI and UHF TV stations
are important contributors.
The Roanoak stations
are particularly strong and a selection of features are
noted below:
![]() |

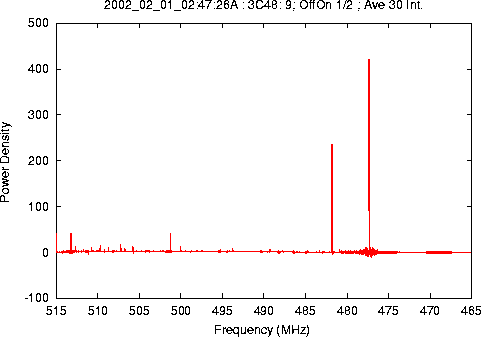

3C48: 9; OffOn 1/2
Samplers 1,5 of 8, Ave of 30 Int.
Ascii Data (2002_02_01_02:47:26A.0.log)
All data averaged. |
![]() |

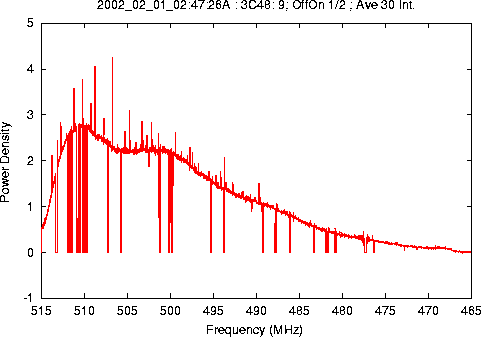

3C48: 9; OffOn 1/2
Samplers 1,5 of 8, Ave of 30 Int.
Ascii Data (2002_02_01_02:47:26A.1.log)
Bright RFI zeroed. |
![]() |

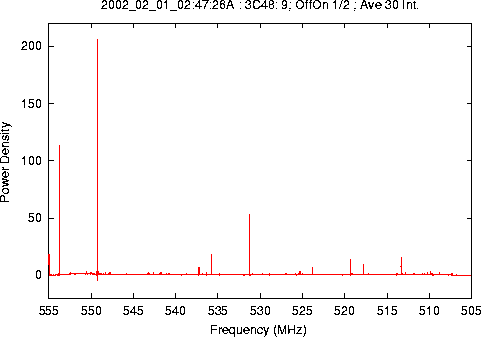

3C48: 9; OffOn 1/2
Samplers 2,6 of 8, Ave of 30 Int.
Ascii Data (2002_02_01_02:47:26A.2.log)
All data averaged. |
![]() |

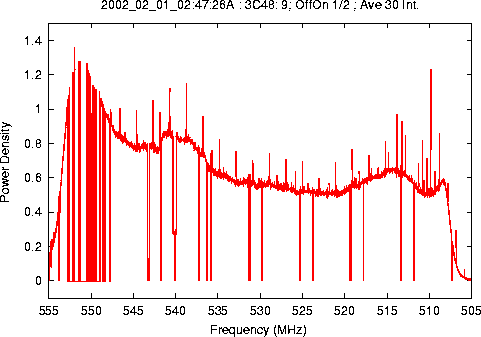

3C48: 9; OffOn 1/2
Samplers 2,6 of 8, Ave of 30 Int.
Ascii Data (2002_02_01_02:47:26A.3.log)
Bright RFI zeroed. |
![]() |

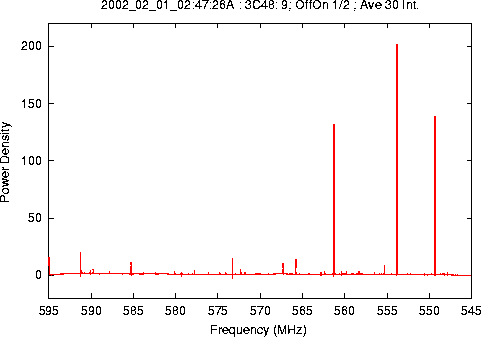

3C48: 9; OffOn 1/2
Samplers 3,7 of 8, Ave of 30 Int.
Ascii Data (2002_02_01_02:47:26A.4.log)
All data averaged. |
![]() |

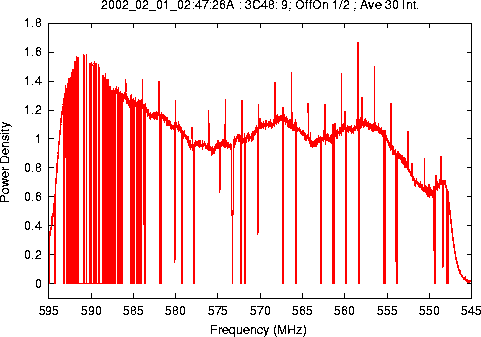

3C48: 9; OffOn 1/2
Samplers 3,7 of 8, Ave of 30 Int.
Ascii Data (2002_02_01_02:47:26A.5.log)
Bright RFI zeroed. |
![]() |

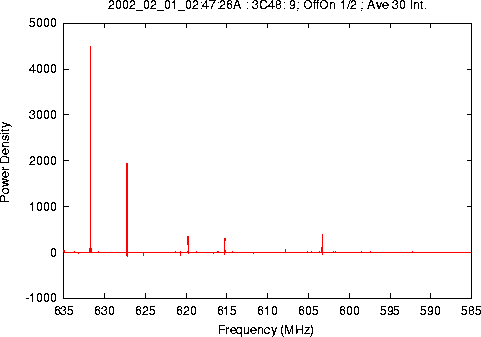

3C48: 9; OffOn 1/2
Samplers 4,8 of 8, Ave of 30 Int.
Ascii Data (2002_02_01_02:47:26A.6.log)
All data averaged. |
![]() |
3C48: 9; OffOn 1/2
Samplers 4,8 of 8, Ave of 30 Int.
Ascii Data (2002_02_01_02:47:26A.7.log)
Bright RFI zeroed. |
![]() |

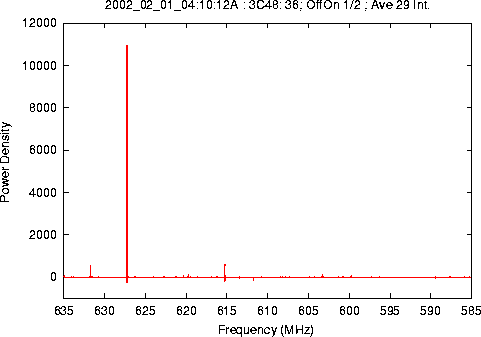

3C48: 36; OffOn 1/2
Samplers 1,5 of 8, Ave of 29 Int.
Ascii Data (2002_02_01_04:10:12A.11.log)
All data averaged. |
![]() |

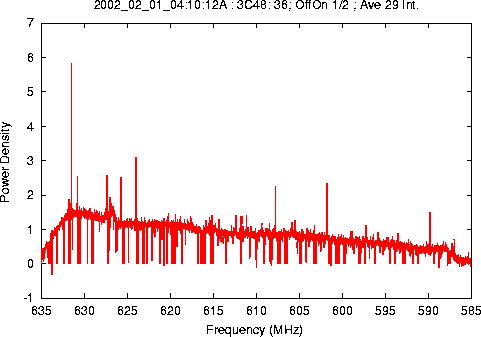

3C48: 36; OffOn 1/2
Samplers 1,5 of 8, Ave of 29 Int.
Ascii Data (2002_02_01_04:10:12A.12.log)
Bright RFI zeroed. |
![]() |

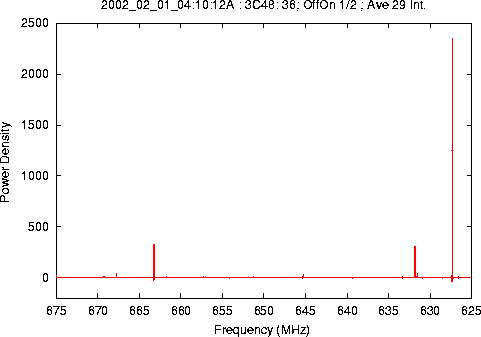

3C48: 36; OffOn 1/2
Samplers 2,6 of 8, Ave of 29 Int.
Ascii Data (2002_02_01_04:10:12A.13.log)
All data averaged. |
![]() |

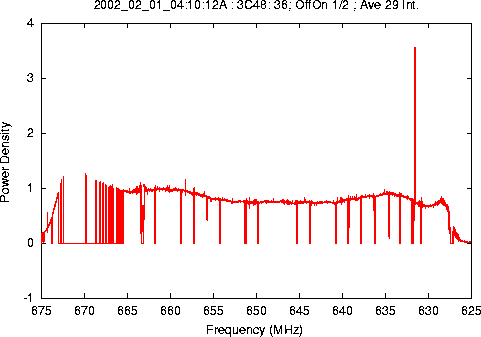

3C48: 36; OffOn 1/2
Samplers 2,6 of 8, Ave of 29 Int.
Ascii Data (2002_02_01_04:10:12A.14.log)
Bright RFI zeroed. |
![]() |

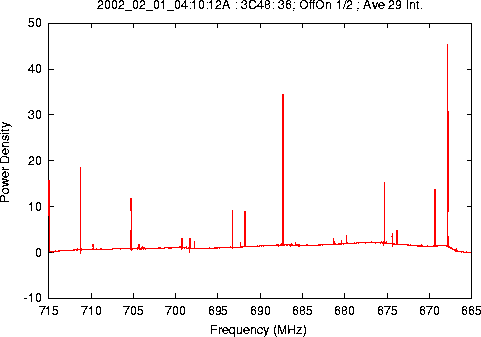

3C48: 36; OffOn 1/2
Samplers 3,7 of 8, Ave of 29 Int.
Ascii Data (2002_02_01_04:10:12A.15.log)
All data averaged. |
![]() |

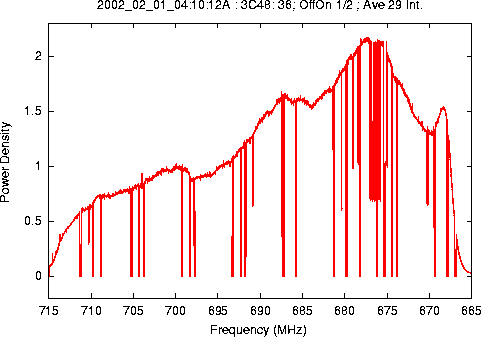

3C48: 36; OffOn 1/2
Samplers 3,7 of 8, Ave of 29 Int.
Ascii Data (2002_02_01_04:10:12A.16.log)
Bright RFI zeroed. |
![]() |

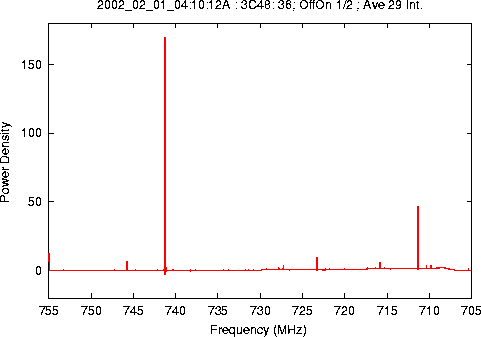

3C48: 36; OffOn 1/2
Samplers 4,8 of 8, Ave of 29 Int.
Ascii Data (2002_02_01_04:10:12A.17.log)
All data averaged. |
![]() |

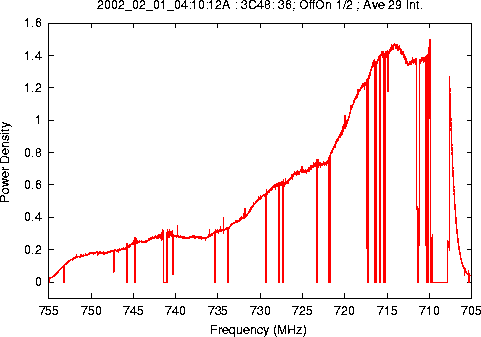

3C48: 36; OffOn 1/2
Samplers 4,8 of 8, Ave of 29 Int.
Ascii Data (2002_02_01_04:10:12A.18.log)
Bright RFI zeroed. |
