| Figure 1. Feb 28 C-band map with component models |
|---|
|
|

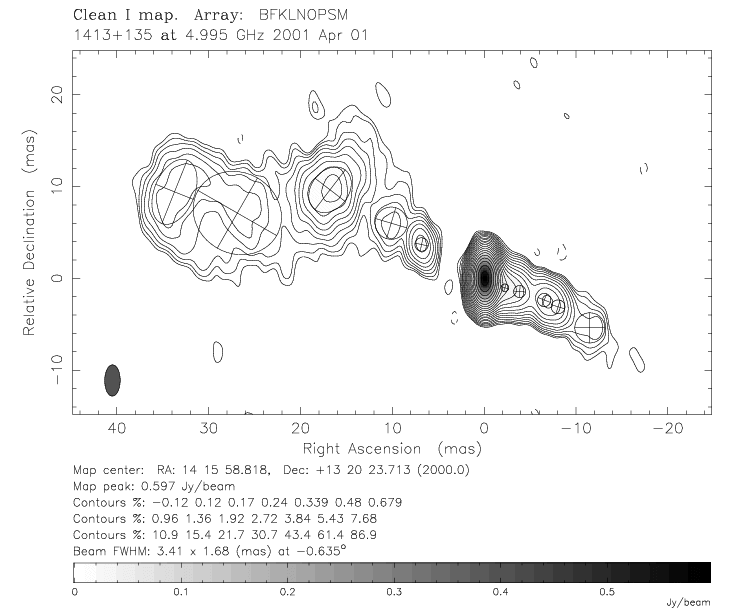

| Figure 2. Apr 01 C-band map with component models |
|
|

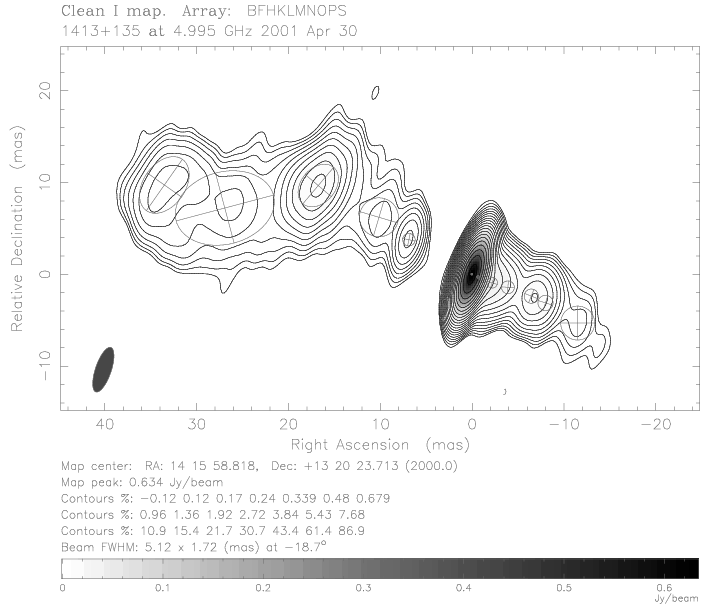

| Figure 3. Apr 30 C-band map with component models |
|
|
The following lists the parameters of the fitted models. The components are numbered from east to west.
C-band model components.
For each component the first line for each epoch gives (F)Flux Density,
(W)Major axis, (R)Axial Ratio.
Line 2 is the error estimates in Flux Density and Major Axis.
Line 3 is X and Y positions and (DL) position error.
____Feb_28____ ____Apr_01____ _____Apr_30____
N F(mJy) W(mas) R F(mJy) W(mas) R F(mJy) W(mas) R
(DF) (DW) (DF) (DW) (DF) (DW)
X Y (DL) X Y (DL) X Y (DL)
----- ----- ----- ------ ----- ----- ------ ---- -----
1 27.52 6.87 0.61 32.96 7.44 0.59 30.86 6.83 0.67
(14.41) (3.77) (17.99) (4.27) (8.23) (1.98)
33.36 9.93 (1.89) 33.72 9.43 (2.13) 33.52 9.74 (0.99)
2 53.92 11.68 0.71 50.63 9.87 0.89 50.65 10.97 0.72
(39.18) (8.63) (30.42) (6.10) (19.15) (4.30)
27.38 6.99 (4.32) 26.88 7.12 (3.05) 26.93 7.23 (2.15)
3 61.04 5.02 0.75 66.93 5.43 0.75 62.20 5.20 0.72
(8.31) (0.74) (10.39) (0.92) (5.32) (0.51)
16.75 9.74 (0.37) 16.78 9.65 (0.46) 16.76 9.68 (0.26)
4 11.70 3.91 1.00 11.18 3.52 1.00 12.57 4.25 1.00
(5.57) (2.13) (5.34) (2.03) (3.98) (1.64)
10.02 5.84 (1.06) 10.12 6.02 (1.01) 10.15 6.22 (0.82)
5 10.97 1.22 1.00 13.23 1.46 1.00 11.91 1.37 1.00
(1.74) (0.39) (2.33) (0.49) (1.59) (0.43)
6.83 3.76 (0.20) 6.81 3.69 (0.24) 6.89 3.78 (0.22)
6 548.89 0.14 1.00 566.89 0.11 1.00 600.84 0.20 1.00
(1.34) (0.01) (1.71) (0.01) (1.32) (0.01)
0.02 0.01 (0.00) -0.03 0.01 (0.00) 0.03 0.03 (0.00)
7 62.21 0.00 1.00 55.63 0.00 1.00 57.81 0.28 1.00
(1.33) (0.05) (1.71) (0.07) (1.33) (0.07)
-0.67 -0.31 (0.02) -0.74 -0.35 (0.04) -0.64 -0.27 (0.03)
8 30.79 0.91 1.00 29.32 0.83 1.00 33.03 1.16 1.00
(1.56) (0.12) (1.91) (0.16) (1.51) (0.15)
-2.19 -0.94 (0.06) -2.26 -1.02 (0.08) -2.18 -0.91 (0.07)
9 19.99 1.27 1.00 22.46 1.31 1.00 19.95 1.40 1.00
(1.77) (0.22) (2.21) (0.27) (1.60) (0.26)
-3.77 -1.50 (0.11) -3.87 -1.43 (0.13) -3.90 -1.40 (0.13)
10 21.78 1.74 1.00 20.57 1.44 1.00 20.35 1.55 1.00
(2.16) (0.27) (2.31) (0.31) (1.67) (0.27)
-6.39 -2.38 (0.14) -6.54 -2.35 (0.16) -6.44 -2.37 (0.14)
11 12.77 1.60 1.00 13.63 1.51 1.00 13.64 1.66 1.00
(2.04) (0.43) (2.38) (0.49) (1.72) (0.43)
-8.01 -3.19 (0.21) -8.05 -3.09 (0.25) -7.99 -3.10 (0.21)
12 7.33 3.43 1.00 7.67 3.28 1.00 7.24 3.70 1.00
(4.59) (2.54) (4.87) (2.58) (3.34) (2.19)
-11.25 -4.95 (1.27) -11.51 -5.39 (1.29) -11.49 -5.30 (1.09)
|
