KU-band (15.36 GHz) Gain Curve Data, Sept. 25, 2004

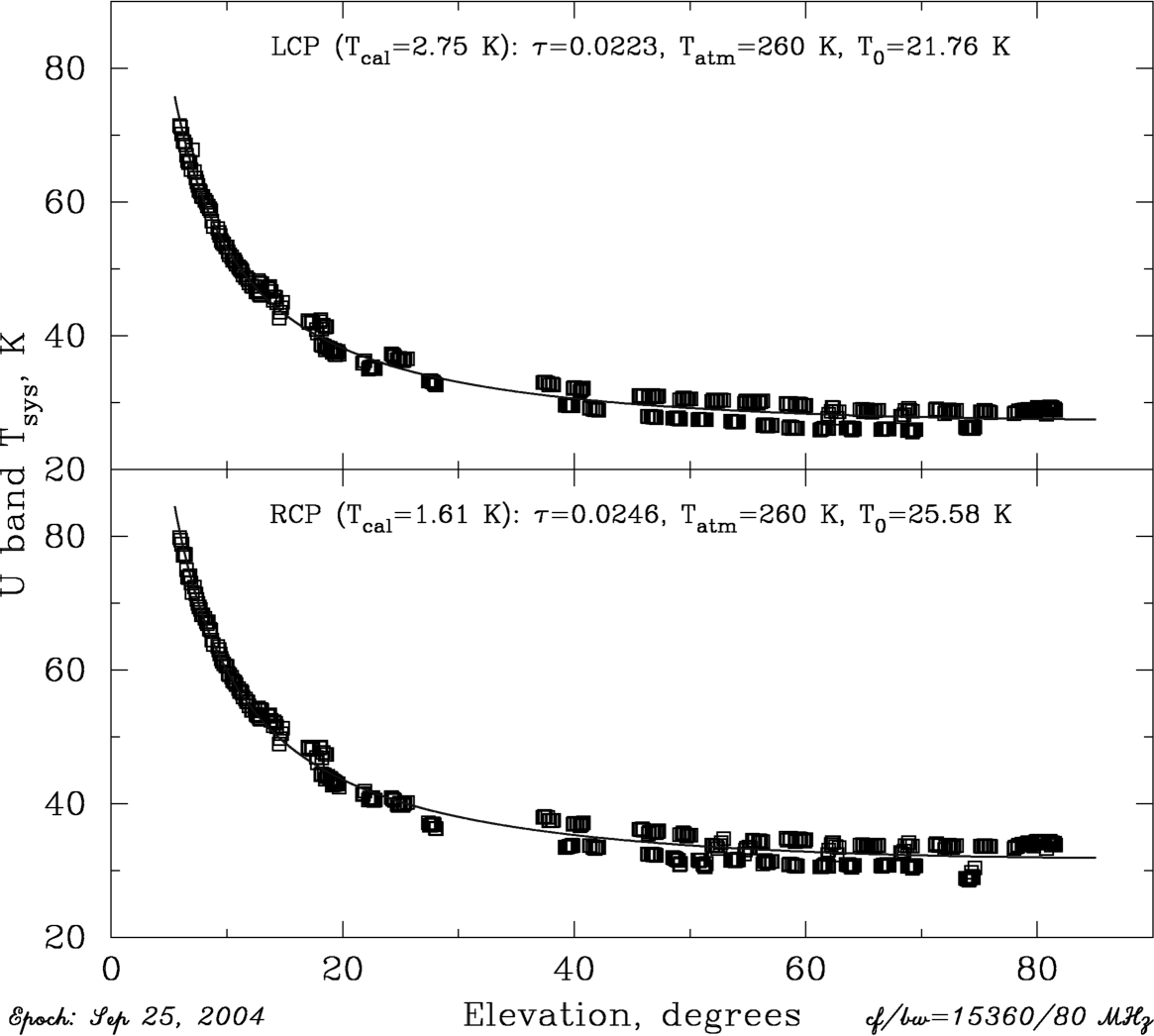

Figure 1. Plot of Tsys vs Elevation
Tsys with fitted curves and derived opacities.

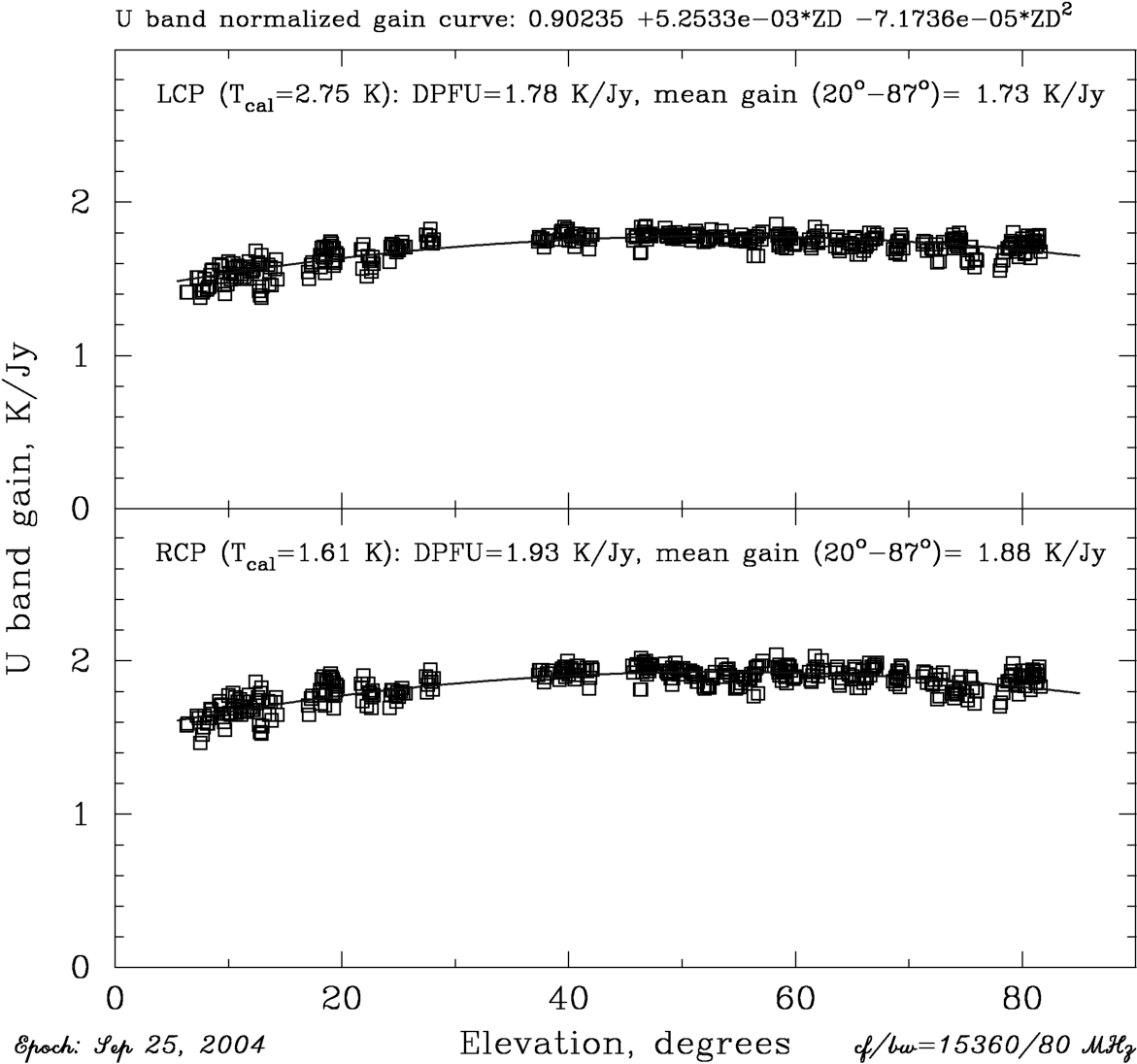

Figure 2. Plot of Gain vs Elevation

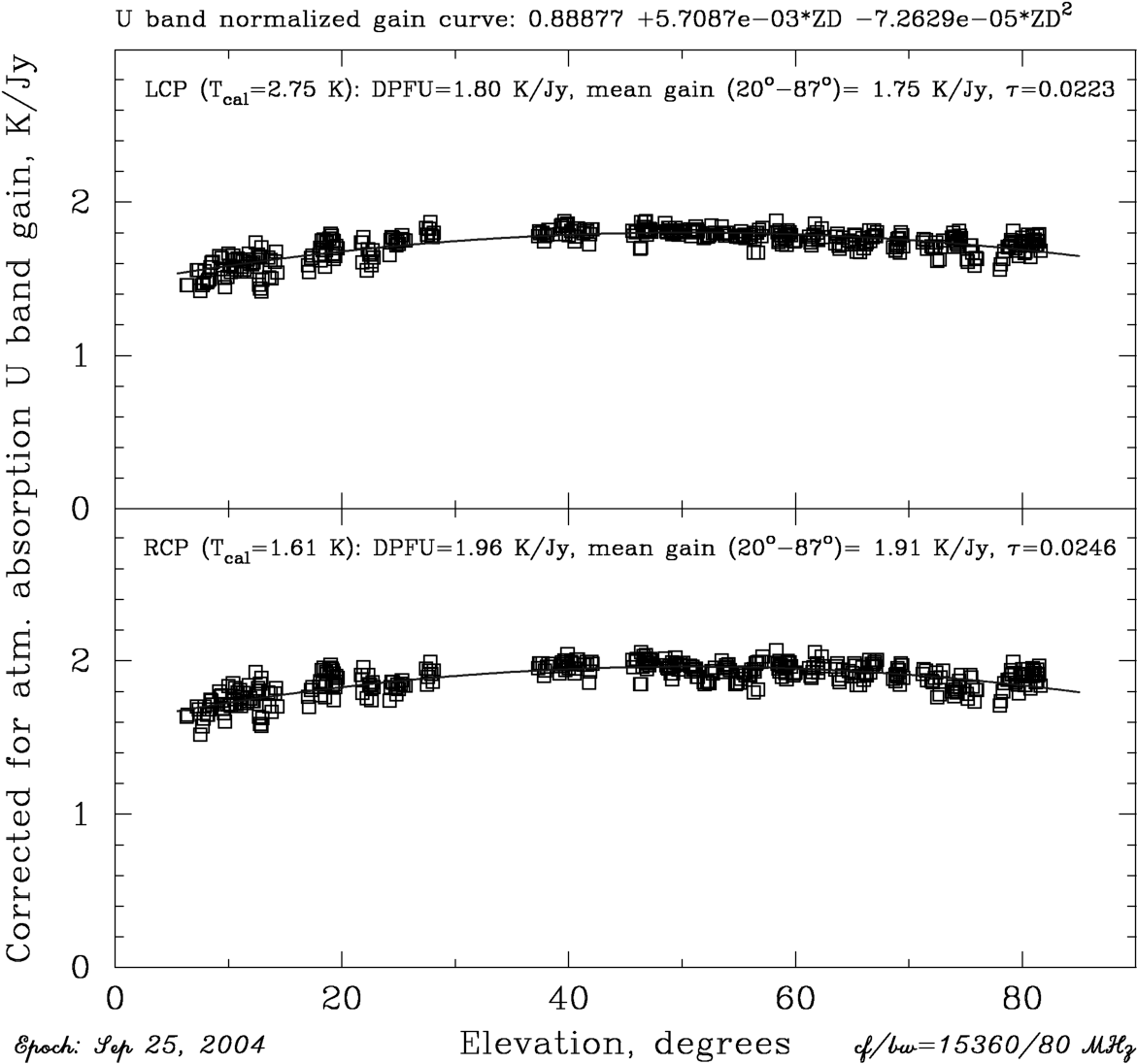

Figure 3. Gain Corrected for atmospheric absorption.

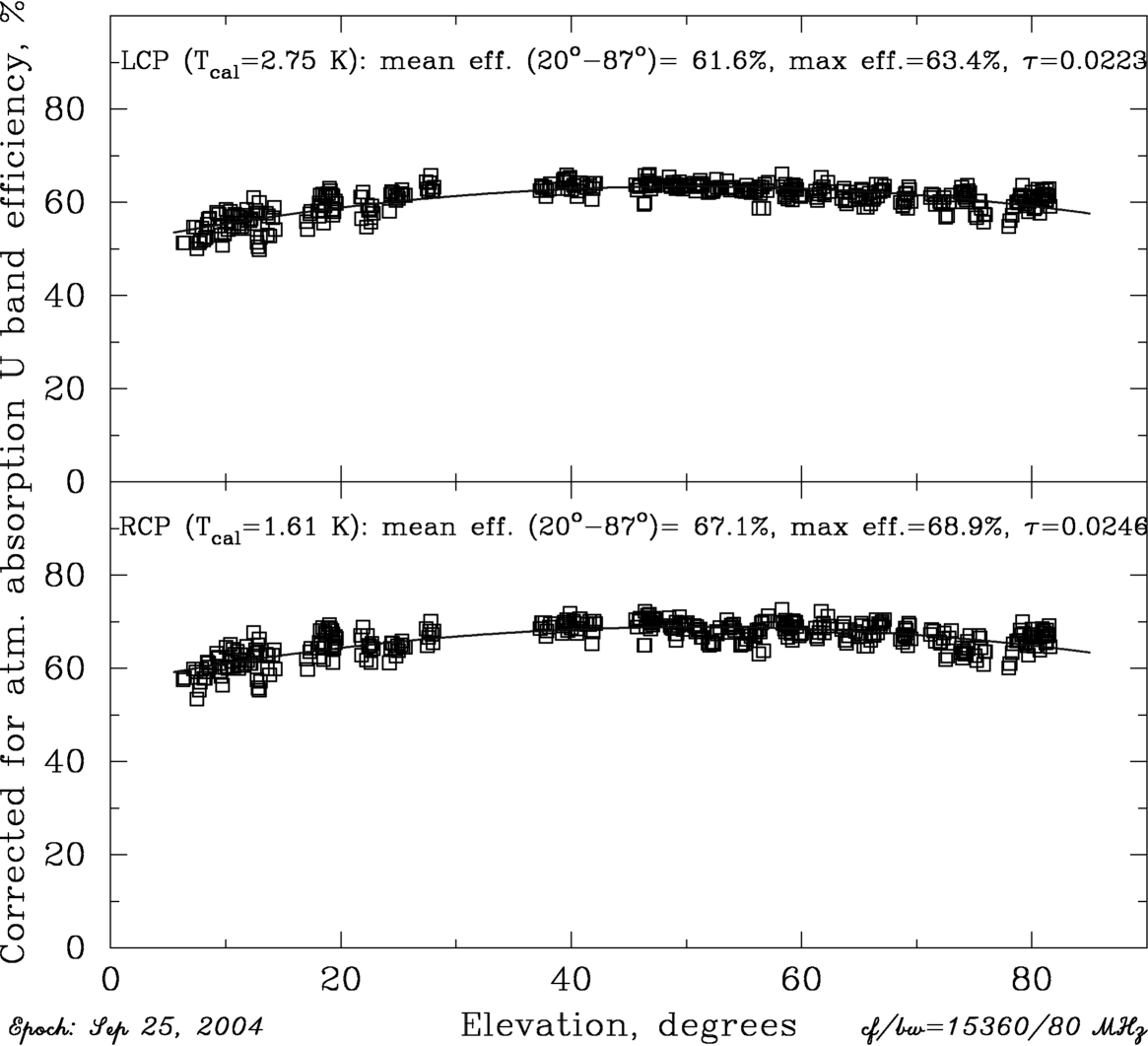

Figure 4. Aperture Efficiency Corrected for atmospheric absorption.
