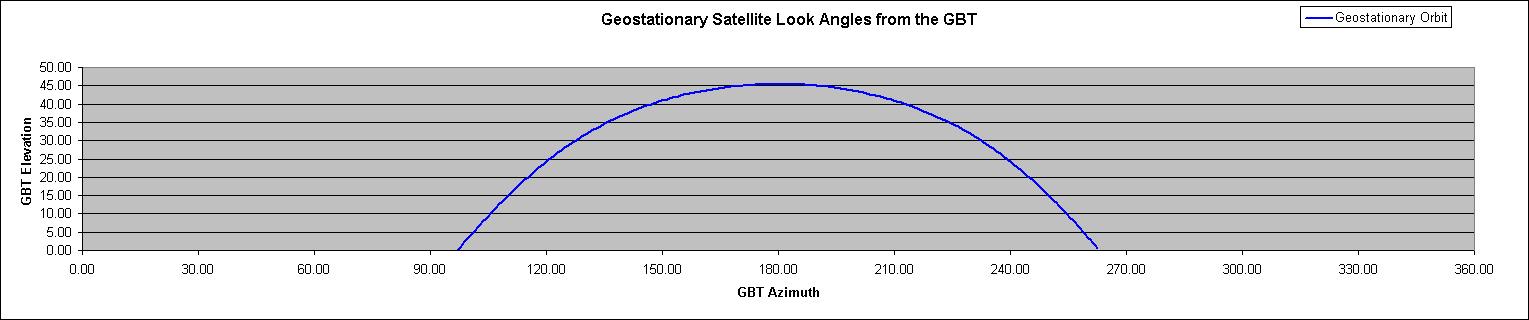

Geostationary Satellite Look Angles from the GBT
(NAD83 Longitude 38 25 59.2 West)
West Longitude Azimuth Elevation
(Degrees True) (Degrees)
1 96.99 0.03
2 97.63 0.81
3 98.27 1.59
4 98.91 2.36
5 99.56 3.15
6 100.21 3.92
7 100.86 4.70
8 101.52 5.48
9 102.19 6.26
10 102.86 7.04
11 103.53 7.81
12 104.21 8.60
13 104.89 9.37
14 105.58 10.15
15 106.28 10.92
16 106.98 11.70
17 107.69 12.47
18 108.40 13.23
19 109.13 14.01
20 109.86 14.78
21 110.60 15.54
22 111.35 16.31
23 112.10 17.07
24 112.86 17.83
25 113.64 18.58
26 114.43 19.33
27 115.23 20.08
28 116.03 20.83
29 116.85 21.57
30 117.67 22.31
31 118.52 23.05
32 119.36 23.77
33 120.24 24.50
34 121.11 25.22
35 122.01 25.93
36 122.91 26.64
37 123.83 27.35
38 124.77 28.04
39 125.72 28.73
40 126.69 29.41
41 127.66 30.09
42 128.67 30.75
43 129.68 31.41
44 130.72 32.07
45 131.76 32.71
46 132.83 33.33
47 133.92 33.96
48 135.03 34.57
49 136.15 35.17
50 137.29 35.76
51 138.46 36.33
52 139.65 36.90
53 140.85 37.46
54 142.08 37.99
55 143.32 38.52
56 144.59 39.03
57 145.88 39.52
58 147.19 40.00
59 148.52 40.46
60 149.87 40.91
61 151.23 41.33
62 152.63 41.75
63 154.04 42.14
64 155.47 42.51
65 156.91 42.86
66 158.38 43.19
67 159.86 43.51
68 161.36 43.80
69 162.88 44.07
70 164.41 44.30
71 165.95 44.54
72 167.51 44.74
73 169.08 44.92
74 170.66 45.07
75 172.23 45.20
76 173.84 45.30
77 175.44 45.39
78 177.04 45.44
79 178.65 45.48
80 180.26 45.49
81 181.87 45.47
82 183.47 45.43
83 185.08 45.37
84 186.67 45.28
85 188.26 45.16
86 189.85 45.02
87 191.43 44.86
88 192.99 44.68
89 194.54 44.47
90 196.08 44.24
91 197.60 43.98
92 199.12 43.71
93 200.60 43.41
94 202.09 43.09
95 203.55 42.75
96 204.99 42.39
97 206.42 42.01
98 207.82 41.62
99 209.20 41.20
100 210.57 40.77
101 211.91 40.32
102 213.23 39.84
103 214.54 39.37
104 215.82 38.87
105 217.08 38.34
106 218.32 37.82
107 219.54 37.28
108 220.73 36.72
109 221.91 36.16
110 223.07 35.58
111 224.20 34.98
112 225.33 34.37
113 226.43 33.76
114 227.51 33.14
115 228.57 32.50
116 229.62 31.86
117 230.64 31.21
118 231.65 30.54
119 232.65 29.87
120 233.62 29.20
121 234.59 28.51
122 235.53 27.82
123 236.46 27.12
124 237.38 26.41
125 238.28 25.71
126 239.17 24.99
127 240.04 24.27
128 240.90 23.54
129 241.75 22.81
130 242.59 22.08
131 243.41 21.34
132 244.23 20.59
133 245.03 19.84
134 245.82 19.09
135 246.60 18.34
136 247.38 17.58
137 248.14 16.82
138 248.89 16.06
139 249.64 15.29
140 250.38 14.53
141 251.10 13.76
142 251.83 12.99
143 252.54 12.21
144 253.25 11.45
145 253.95 10.68
146 254.64 9.90
147 255.33 9.12
148 256.01 8.35
149 256.69 7.57
150 257.36 6.79
151 258.03 6.01
152 258.69 5.23
153 259.34 4.45
154 260.00 3.68
155 260.65 2.90
156 261.28 2.12
157 261.94 1.34
158 262.58 0.56
