19 May 2002 [baseline_07]

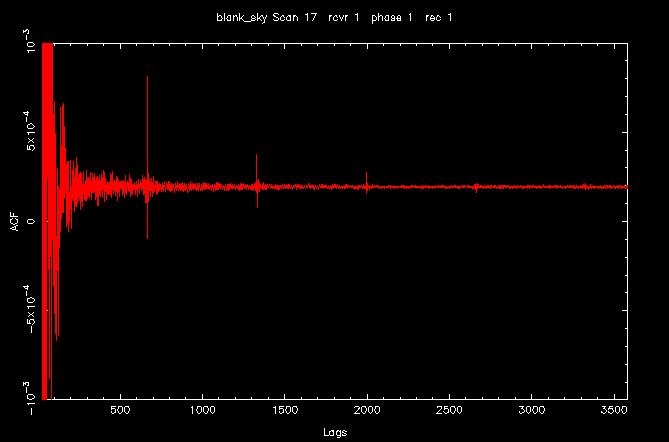

The auto-correlation function (ACF) towards blank sky at C-band
centered at 4400 MHz (Scan 17).
(Postscript Version)
The spectrometer was used with an 800 MHz bandwidth (2W1-5X-800).
Notice the features at lags 669, 1337, etc. which correspond to
frequencies 2.4, 1.2, etc. The TRACK procedure was used towards blank
sky.
Last modified: Tue Nov 5 13:55:40 EST 2002
The raw total power spectrum towards blank sky at C-band centered at 4400 MHz (Scan 17). (Postscript Version) The spectrometer was used with an 800 MHz bandwidth (2W1-5X-800). The plot reveals a 2.4 MHz ripple.
|
|
|
|
|
|
