- rx1to2.yrcpunoiseswctrl
- rx1to2.xlcpunoiseswctrl

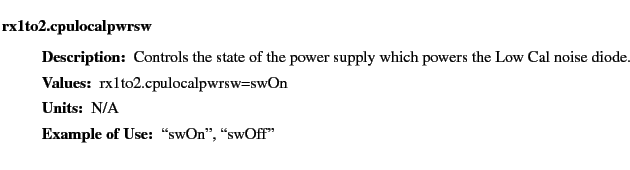

- rx1to2.cpulocalpwrsw

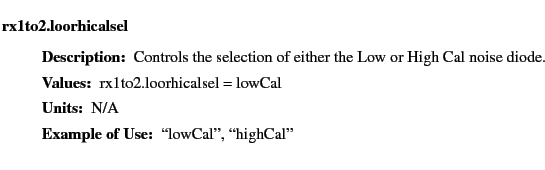

- rx1to2.loorhicalsel
- rx1to2.xlexttomcbctrlsel

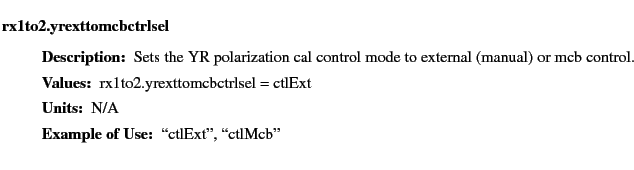

- rx1to2.yrexttomcbctrlsel

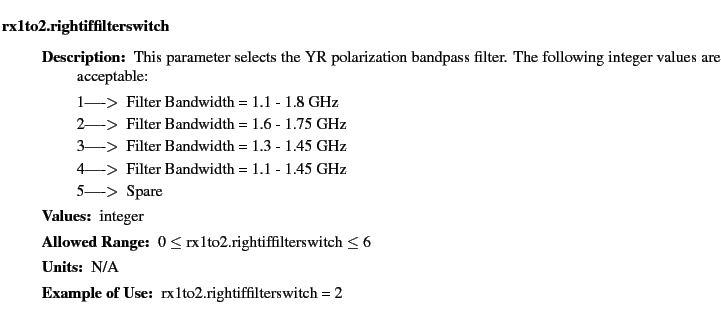

- rx1to2.rightiffilterswitch
- rx1to2.leftiffilterswitch

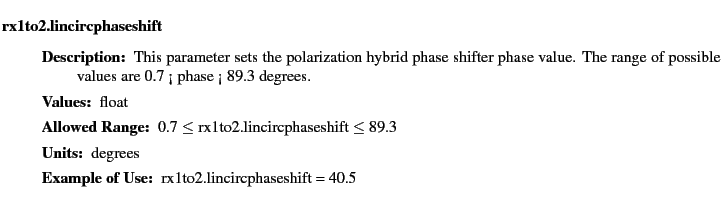

- rx1to2.lincircphaseshift

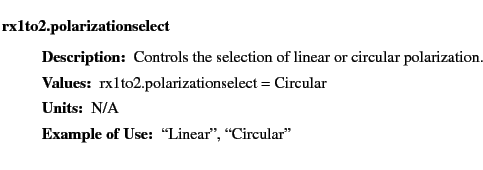

- rx1to2.polarizationselect

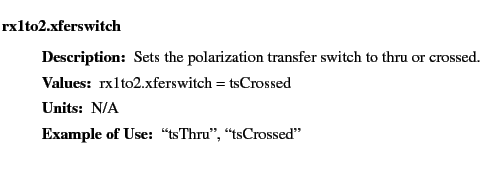

- rx1to2.xferswitch

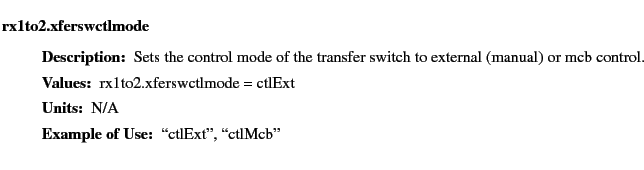

- rx1to2.xferswctlmode

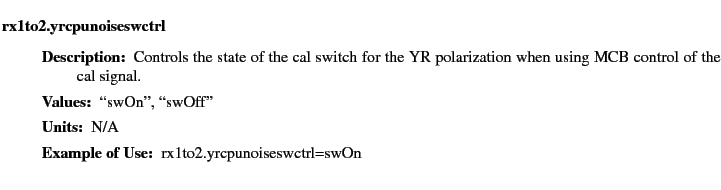

![$\textstyle \parbox{6.25in}{
\begin{description}
\item [rx1to2.yrcpunoiseswctr...
...ues:]
\item[YGOR to GO mapping:]
}{}
\end{description} \end{description}}$](img284.png)

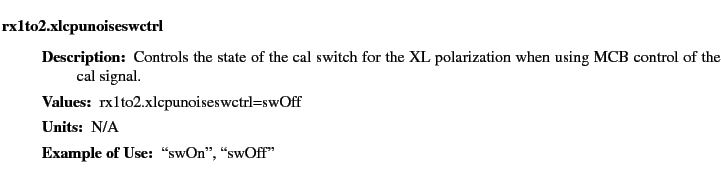

![$\textstyle \parbox{6.25in}{
\begin{description}
\item [rx1to2.xlcpunoiseswctr...
...ues:]
\item[YGOR to GO mapping:]
}{}
\end{description} \end{description}}$](img285.png)
![$\textstyle \parbox{6.25in}{
\begin{description}
\item [rx1to2.cpulocalpwrsw]~...
...ues:]
\item[YGOR to GO mapping:]
}{}
\end{description} \end{description}}$](img286.png)
![$\textstyle \parbox{6.25in}{
\begin{description}
\item [rx1to2.loorhicalsel]~~...
...ues:]
\item[YGOR to GO mapping:]
}{}
\end{description} \end{description}}$](img287.png)

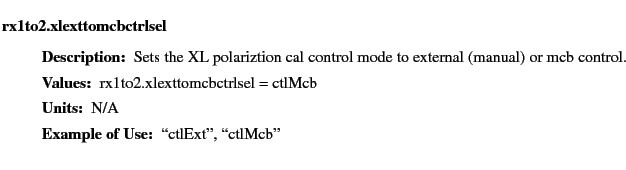

![$\textstyle \parbox{6.25in}{
